Home > Switch Series > Detector Switch > DS-16 > DS-1655RE
DS-1655RE

Typical Specification

  1. Rating: DC 12v 10mA
  2. Free Position: 3.3+0.3/-0.1mm
  3. Operating Position: 3.0+0.1/-0.3mm
  4. Contact resistance: 100MΩ max
  5. Insulation resistance: 100MΩ min
  6. Operating life: 50,000 cycles

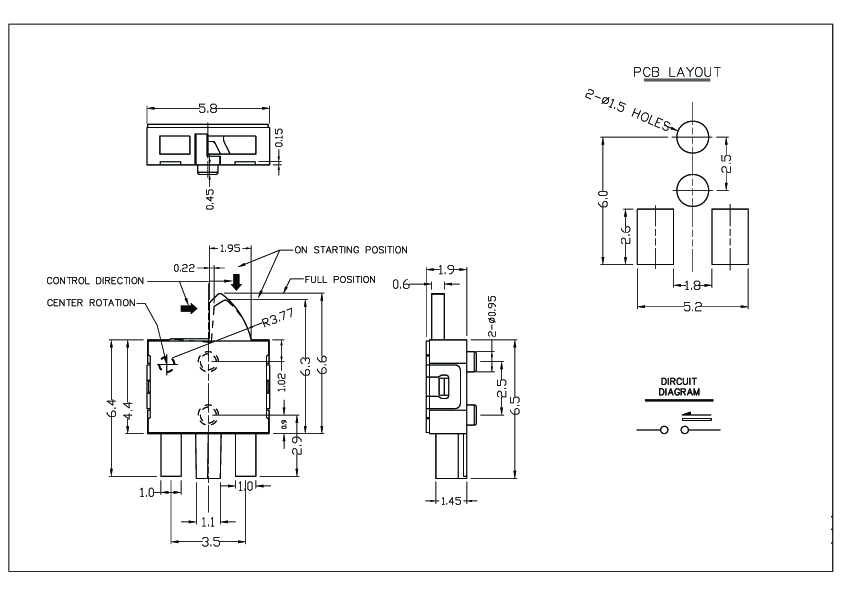

Specification

DS-1655RE
