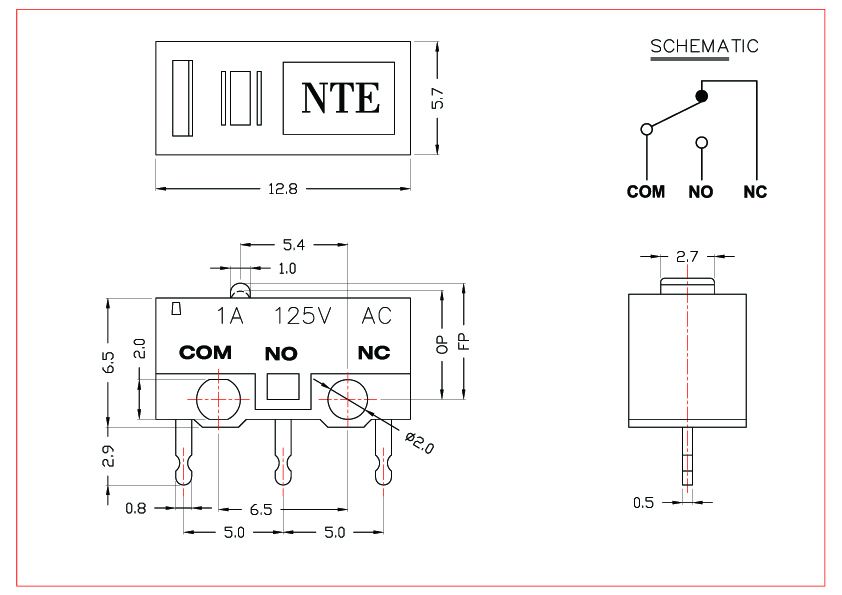

SSM-000C

Typical Specification

  1. Rating: 1A 125/250 VAC
  2. Operating Force: 100±35gf
  3. Release Force: 55±20gf
  4. Free Position: 5.7±0.3mm
  5. Operating Position: 5.5±0.3mm
  6. Operating life: 50,000 cycles.

Specification

SSM-000C
