KSS-4PHA050E

Typical Specification

  1. Rating: DC 12V 50mA
  2. Travel: 0.20±0.1mm
  3. Operating Force: 260±80gf
  4. Return Force: 100gf min
  5. Contact resistance: 100MΩ max
  6. Insulation resistance: 100MΩ min.
  7. Operating life: 50,000 cycles

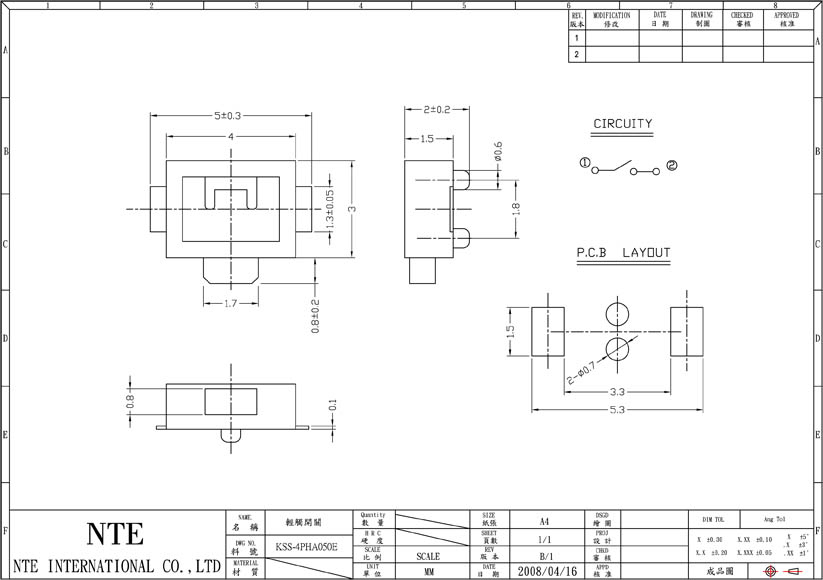

Specification

KSS-4PHA050E
