KSS-0EH3380

Typical Specification

  1. Rating: DC 12V 50mA
  2. Travel: 0.25±0.1mm
  3. Operating Force: 260±80gf
  4. Return Force: 100gf min
  5. Contact resistance: 100M OHS max
  6. Insulation resistance: 100M OHMS min.
  7. Operating life: 30,000 cycles

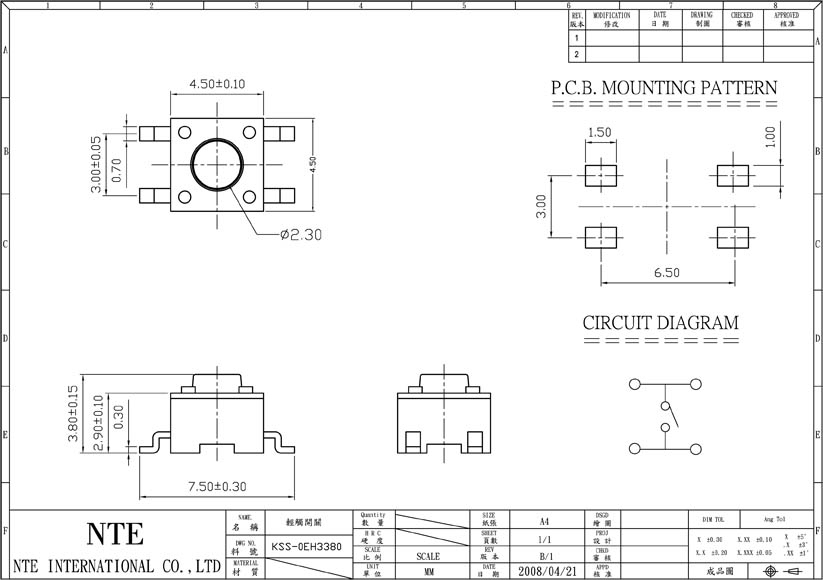

Specification

KSS-0EH3380
