KSM-0PH1730

Typical Specification

  1. Rating: DC 12V 50mA
  2. Travel: 0.3±0.15mm
  3. Operating Force: 260±50gf
  4. Return Force: 100gf min
  5. Contact resistance: 100M OHS max
  6. Insulation resistance: 100M OHS min
  7. Operating life: 100,000 cycles

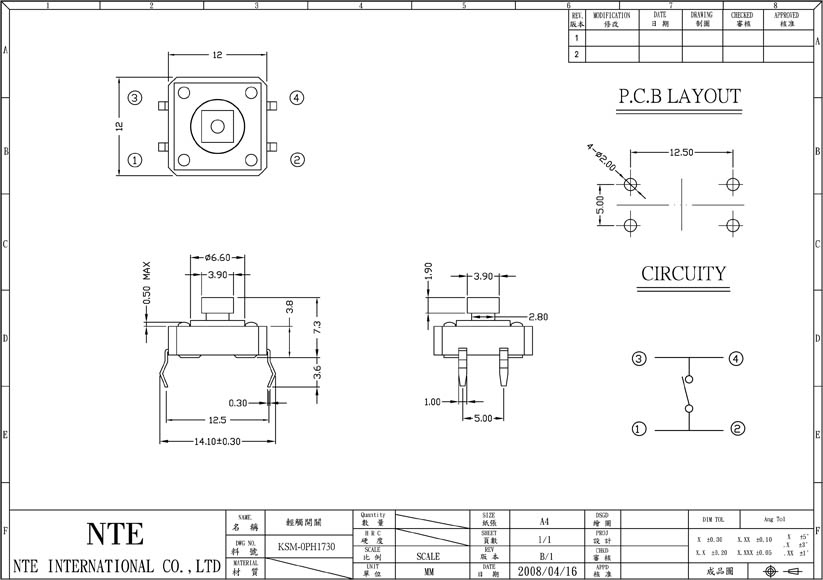

Specification

KSM-0PH1730
